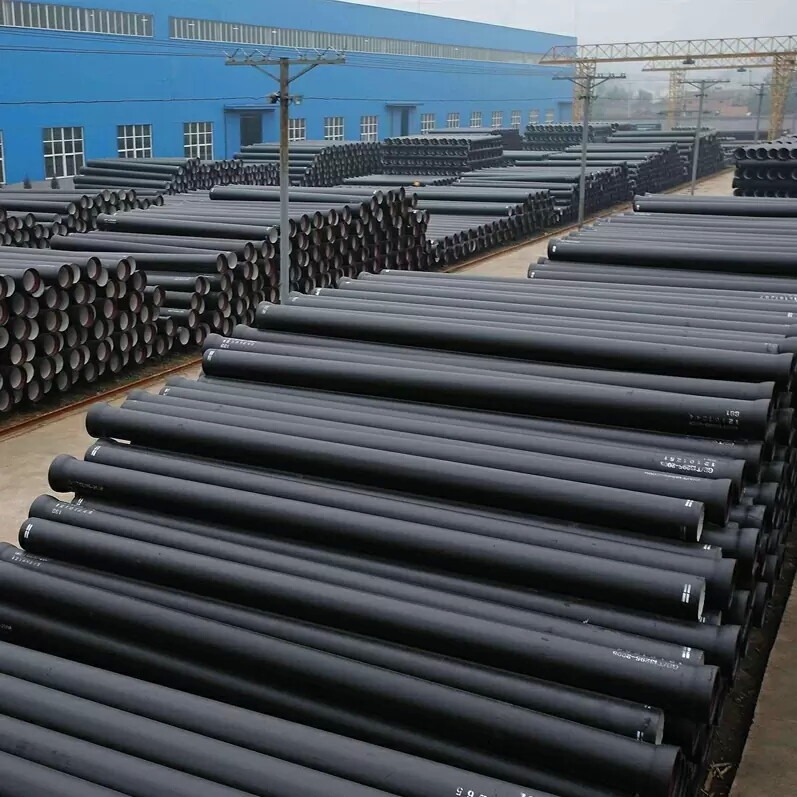

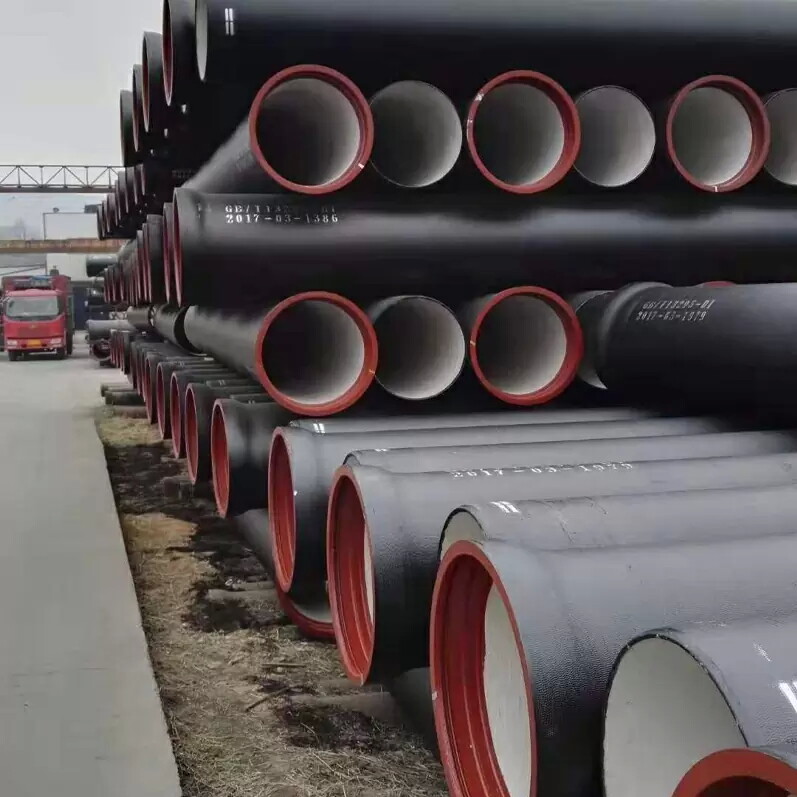

ISO 2531 Ductile Iron Double Welding Pipe
Ductile iron pipe refers to the use of more than 18 casting hot metal after the addition of spheroidizing agent, through the centrifugal ductile iron machine high-speed centrifugal casting into the pipe, referred to as the ductile iron pipe, ductile iron pipe and ductile casting pipe. Mainly used for the transmission of tap water, is the ideal choice of water pipeline materials.
+86 153 7635 6088
+86 153 7635 6088
info@jtl-steel.com
Contact Us

Ductile iron pipe refers to the use of more than 18 casting hot metal after the addition of spheroidizing agent, through the centrifugal ductile iron machine high-speed centrifugal casting into the pipe, referred to as the ductile iron pipe, ductile iron pipe and ductile casting pipe. Mainly used for the transmission of tap water, is the ideal choice of water pipeline materials.


The standard of pipe

ISO 2531, EN545, EN598

Pipe class

K9, C40, C30, C25, etc

Pipe joint

Push-on joint(Tyton joint), K type joint, self-restrained joint

Effective length

In general, the pipe length is 6m for bulk shipment and 5.7m for container shipment

Internal lining

Cement mortar lining as per ISO4179

Zinc coating

At least 130g/m2 as per ISO 8179

Bitumen painting

At least 70um as per ISO 8179

Gaskets

NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633

DN

80 - 2600mm

Advantage

High strength, lighter than gray iron, good corrosion resistance, no furring, small flow   resistance, easy fixing, long life time

Chemical composition (%)

a) C: 3.5 - 4.0   b) Si: 1.9 - 2.6  c) Mn:0.15 - 0.45  d) P: <0.06  e) S: <0.02

Mechanical properties

a) Tensile strength: ≥420MPa   b) Yield strength: ≥300Mpa   c) Hardness: ≤230HB   d) Elongation%: DN80 - 1000 ≥10 DN1200 - 2200 ≥ 7

Packing

Bundled with steel belts or in bulk

Shipment

In bulk or container

详情标题1-产品详情


Our ductile iron pipes combine the strength of steel with the corrosion resistance of cast iron, making them ideal for modern water and wastewater systems. Through advanced spheroidization treatment, our pipes achieve high tensile strength and excellent impact resistance, ensuring reliable performance under high-pressure conditions. The pipes are internally lined with cement mortar or epoxy resin for enhanced flow efficiency and corrosion protection, while the external zinc coating with anti-corrosion finish provides long-term durability. Available in various classes (K7/K8/K9) and diameters, our products meet demanding municipal water supply, drainage, and industrial applications.


1球墨-产品详情 拷贝



详情标题2-生产线


Our ductile iron pipes are produced using state-of-the-art centrifugal casting technology with computer-controlled molding and pouring systems. The production line features automated annealing furnaces for precise heat treatment, real-time nodularity monitoring equipment to ensure graphite spheroidization rates exceed 90%, and CNC machining centers for accurate socket and spigot processing. Integrated testing systems including hydrostatic pressure testing, ultrasonic thickness measurement, and coating adhesion checks guarantee consistent quality throughout the manufacturing process. Our smart factory supports customized lengths, thickness classes, and special lining requirements to meet project-specific needs.


2球墨-生产线 拷贝



详情标题3-检测


In order to ensure product quality, we will arrange professional personnel to check product quality, packaging, weight, hardness, etc., according to customer requirements of product specifications, looking for high-quality and cheap cooperative factories in China, to provide customers with one-stop procurement services and quality assurance.


3球墨-检测 拷贝



详情标题4-发货


Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.


4球墨-包装运输 拷贝
