Low Price Dr9 Dr8 Pte Grade Tin Coated Steel Coil
Looking for premium quality low-price DR9 & DR8 PTE grade tin coated steel coil? Our tinplate steel sheets offer exceptional strength, corrosion resistance, and recyclability. Perfect for decorative, storage, and promotional packaging, our tin coated steel coils are available in various thicknesses, widths, and tin coatings to suit your needs. As a professional manufacturer, we guarantee product quality through rigorous testing and adhere to international standards.
+86 153 7635 6088
+86 153 7635 6088
info@jtl-steel.com
Contact Us

Tin-plated steel coil, commonly known as tinplate coil is a steel product with a stampable thin steel coil as the base, tin plating on the surface, and multiple protective films. It has the characteristics of corrosion resistance, non-toxic, odorless, glossy surface, light weight, high strength. In addition, it is easy to weld and process, and has strong adaptability to ambient temperature. Single cold-reduced tinplate coil can be supplied with either a bright, silver, stone or matt finish, and the finish required shall be specified at the time of ordering. Single reduced cold-rolled tinplate coil is generally specified in nominal thicknesses that are multiples of 0,005 mm, from 0,150 mm up to and including 0,600 mm. It is widely used in food, beverage, grease, chemical, paint, paint, aerosol cans, bottle caps and many other daily necessities packaging.


Product Parameters

Product NameSingle Reduced Cold-Rolled Tinplate Coil
Thickness0.18mm-0.50mm
Width260mm-980mm
LengthSupport customization
Tin CoatingGeneral: 2.8g or 5.6g, can be produced according to your needs
Substrate TypeMR / SPCC / L / D
Reference StandardGB/T 2520, JIS G3303, JIS G3315, DIN EN 10202, DIN EN 10203


Surface State of Tinplate

Surface StateFeatures
Light SurfaceElectroplated tin smooth raw material strip after melting treatment to obtain the glaze,Smooth surface with very fine grindstone pattern
Stonetextured SurfaceElectroplating tin raw material with the glaze obtained after melting treatment,Grindstone pattern with certain direction
Silvercolor SurfaceElectroplating tin raw material with the glazed surface obtained after melting treatment, the surface is rough and dull
Mattless SurfaceThe surface of the substrate is rough and dull, and the tin plating layer is not soft melting


Substrate Type

Substrate TypeIntroduction
MRThe most general steel, steelmaking impurity residue less, excellent mechanical properties and corrosion resistance
LUsed for the production of acidic contents (oranges, yellow peaches, pineapples, etc.), and the inner surface of the food cans for iron high corrosion resistance tinplate substrate steel, such tinplate is often calledKPlate
DUsed to produce two pieces of high-processing tin plate substrate steel, such tin plate is often called.DIMaterial
SPCCChinese characteristics, using ordinary hot rollingSPHCProduces, usually used for miscellaneous tank purposes.


Coating Weight

ClassificationRepresentation of Tin Coating WeightTin Plating Nominal Weight (g/m2)Minimum Average Tin Plating Weight (g/m2)
Equal Tin Plating (E)1.1/1.11.1/1.11.8
2.2/2.22.2/2.24.0
2.8/2.82.8/2.85.0
5.6/5.65.6/5.610.5
Differentiated Tin Plating (D/A)2.2/1.12.2/1.12.0/0.9
2.8/1.12.8/1.12.25/0.9
5.6/1.15.6/1.15.05/0.9
2.8/2.22.8/2.22.25/2.0
5.6/2.25.6/2.25.05/2.0
5.6/2.85.6/2.85.05/2.25


Chemical Composition

No.CSiMnSPCuNiCrMo
D0.120.030.60.050.020.20.150.10.05
L0.130.030.60.050.150.030.040.060.05
MR0.130.030.60.050.20.20.20.10.05


Mechanical Properties & Applications

Standard NameNominal Hardness HR30TSStrong Yield MPAScope of Application
T-149230 /-50Drawing requirements, drawn ironing cans, nozzles, nozzles, closures
T-253245 /-50Ring and plug, dome, closure, shallow pull and special tank parts
T-2.555260 /-50Battery cell, small can cover and body
T-357275 /-50Cans and cans, large diameter caps, crown caps
T-3.559290 /-50Can body, closure and crown lid
T-461340 /-50Can body, closure and crown lid
T-565480 /-50Cans and cans


Ordering Notes

The ordering elements for tin plating generally include: standard grade (including steel grade code, annealing method and other information such as MR T-3 CA), size (the default order is thickness * width * length, tin plating amount ((different thickness plating) Tin needs to add A/D as the marking line mark, if not, no marking line will be marked), surface, order quantity, etc.
When ordering tin plating, please confirm with our sales staff the end use, such as canbody, ends, twist off caps, crown cork, EOE, etc., as well as the contents, special contents such as milk powder, high protein food, mushrooms, fruits, etc.

详情标题1-产品详情

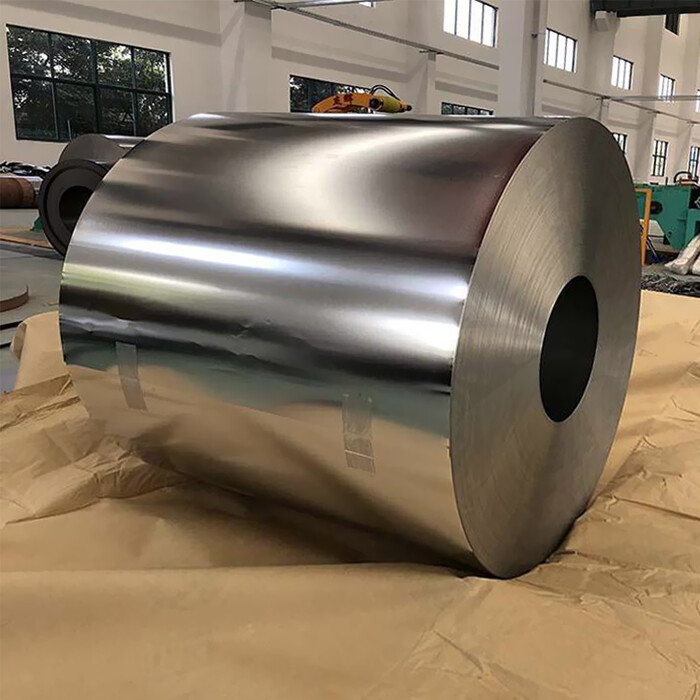

We supply high-quality tinplate coils (electrolytic tin-coated steel) in a wide range of thicknesses and widths, with various tin coating weights available. Our products comply with international standards including JIS G3303 and ASTM A623, and feature excellent surface smoothness suitable for food cans, chemical containers, and electronic components. Different hardness grades and surface treatments such as passivation and oiling can be provided to meet specific application requirements.


1-镀锡卷-产品展示 拷贝



详情标题2-生产线

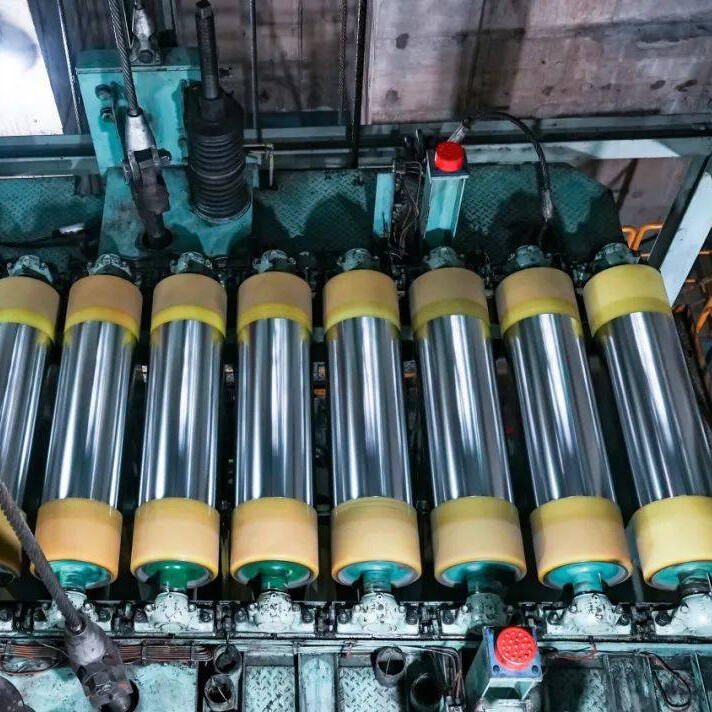

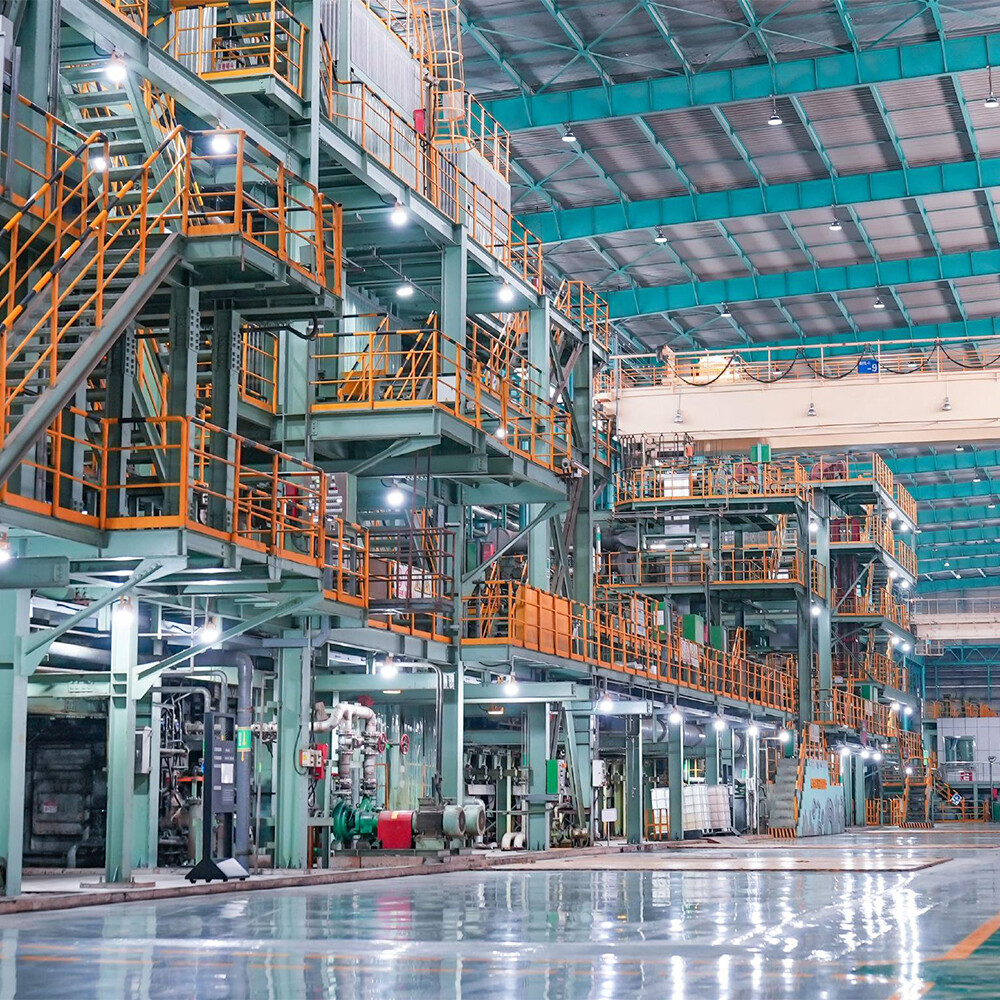

Our tinplate coils are manufactured through a fully automated electrolytic tinning process that begins with thorough electrolytic cleaning and acid pickling for optimal surface preparation, followed by precision tin plating using FERROSTAN technology to achieve coating weight accuracy within ±0.1g/m². The production line incorporates integrated online surface inspection systems and advanced tension control mechanisms, enabling annual output of 150,000 metric tons while supporting specialized production requirements including differential tin coating (asymmetric coating weights on each surface) and custom width specifications.


2-镀锡卷-生产线 拷贝



详情标题3-检测


In order to ensure product quality, we will arrange professional personnel to check product quality, packaging, weight, hardness, etc., according to customer requirements of product specifications, looking for high-quality and cheap cooperative factories in China, to provide customers with one-stop procurement services and quality assurance.


3-镀锡卷-检测 拷贝



详情标题4-发货

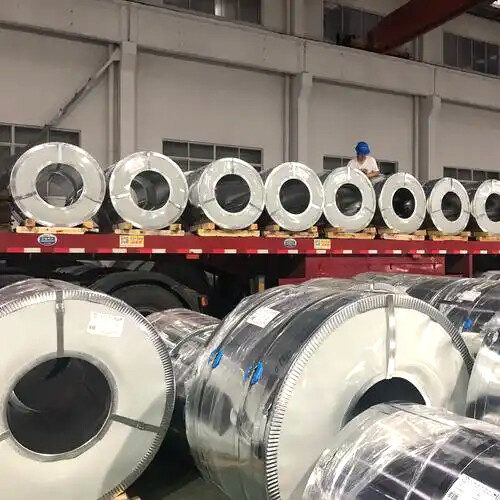

Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.


4-镀锡卷-包装 拷贝
